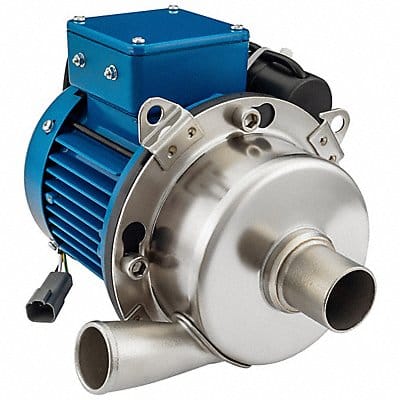

Centrifugal Pump Phase Single Pump Housing Material Stainless Steel Horsepower 1 hp Nameplate Voltage 115/230V AC Flow Rate @ 40 ft of Head (Maximum) 53 gpm Flow Rate @ 60 ft of Head (Maximum) 14 gpm Maximum Feet of Head 64 ft Compatible Intake Pipe Size 1 1/2 in Intake Type Barbed Compatible Discharge Pipe Size 1 1/2 in Discharge Type Barbed Motor Enclosure Totally Enclosed Fan Cooled Flow Rate @ 50 ft of Head (Maximum) 35 gpm Suction Lift (Maximum) 24 ft Priming Manual
