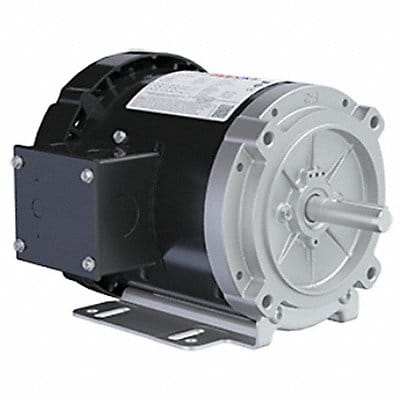

General Purpose Motors Three Phase Motor Design 3-Phase 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.3-2.4/1.2 A 56C Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCW Motor Mounting Type Universal Motor Mounting Position Horizontal
