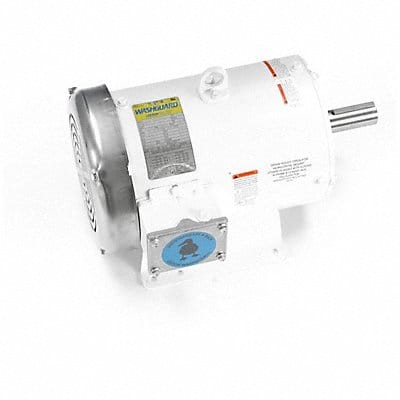

Washdown Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 3 500 No of Speeds 1 Voltage 230/460V AC Full Load Amps 17.6/8.8 A 213T Frame 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Rolled Steel
