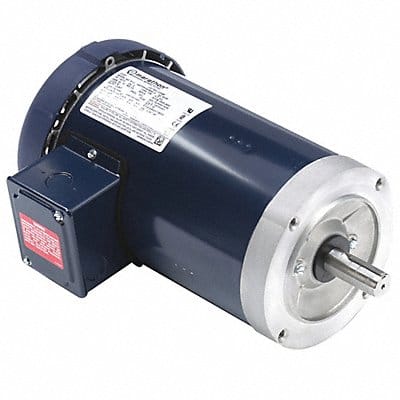

General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 505 No of Speeds 1 Voltage 230/460V AC Full Load Amps 7.6/3.8 A 145TC Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design A Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position Horizontal
