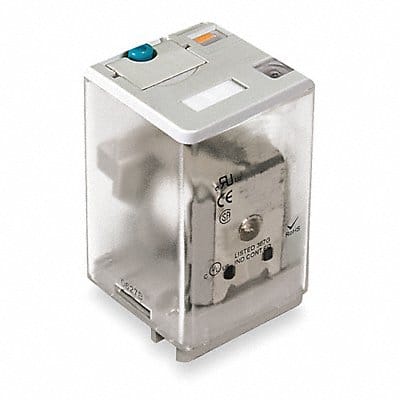

H8002 General Purpose Relay Base Shape Square Coil Voltage 24V AC Contact Form DPDT Current Rating 10 A Number of Pins 8 Status Indicator LED Indicator Mechanical Flag Contact Rating (AC) 10 A @ 277V Contact Rating (DC) 10 A @ 28V Horsepower @ 120V AC 1/3 hp Horsepower @ 240V AC 1/2 hp Mounting Style Plug-In Push-To-Test Method Lockable Body Depth 1.4 in Body Height 2.1 in Body Width 1.37 in Contact Material Silver Alloy
