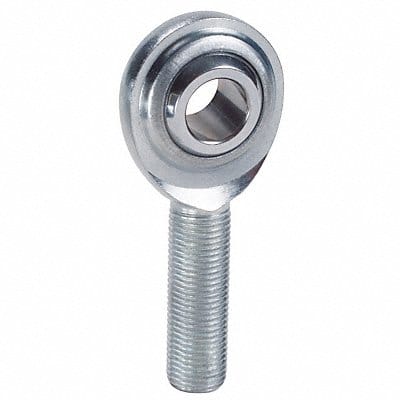

Spherical Rod End System of Measurement Inch Bore Diameter 3/8 in Head Outside Diameter 1 in Head Width 0.359 in Shank Thread Length 1 1/4 in Shank Thread Size 3/8 In.-24 Housing Material Carbon Steel Shank Thread Direction Right Hand Application Light Duty Ball Diameter 0.719 in Ball Material Alloy Steel Ball Material Grade 52100 Bore Diameter Tolerance +0.0025/-0.0005 in Housing Material Finish Chrome Plated Inner Ring Width 0.5 in Maximum Ball Swivel 22 Degrees
