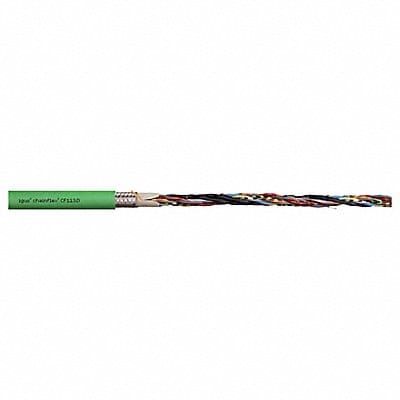

Measuring System Cable Conductor Color Code Green/Yellow Grey/Pink Blue/Red White/Brown Conductor Grouping (3) Pair 26 AWG (0.14)/(2) 17 AWG (1.0) Conductor Material Copper Jacket Color Yellow/Green Jacket Material PUR Length Order by the Foot Maximum Acceleration 164 m/sq sec Maximum Operating Temperature 176 Degrees F Maximum Velocity - Supported 16 fps Maximum Velocity - Unsupported 33 fps Minimum Bend Radius Factor - E-Chain 7.5 x OD Minimum Bend Radius Factor - Fixed 4 x OD
