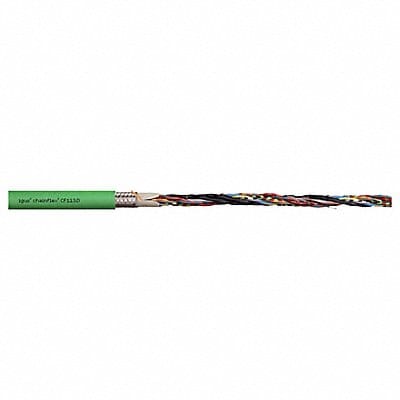

Measuring System Cable Conductor Color Code Blue Grey Pink White/Brown Green Yellow Conductor Grouping (1) Pair 24 AWG (0.25)/(5) 20 AWG (0.50) Conductor Material Copper Jacket Color Yellow/Green Jacket Material PUR Length Order by the Foot Maximum Acceleration 164 m/sq sec Maximum Operating Temperature 176 Degrees F Maximum Velocity - Supported 16 fps Maximum Velocity - Unsupported 33 fps Minimum Bend Radius Factor - E-Chain 7.5 x OD Minimum Bend Radius Factor - Fixed 4 x OD
