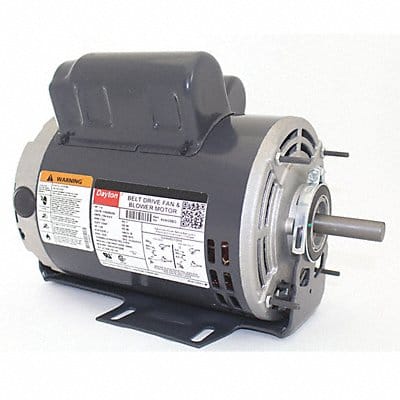

Belt Drive Motor Single Phase Motor Design Capacitor-Start/Run 1 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/208-230V AC 7.8/4.4-4.0 A Full Load Amps 56 Frame 60 Hz Hz Motor Service Factor 1.25 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 140 Degrees F Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position All Angle Motor Frame Material Rolled Steel
