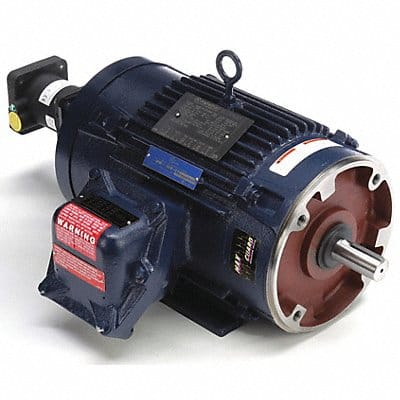

Vector Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 230/460V AC Full Load Amps 8.2/4.1 A 182TC Frame Max Speed 3 600 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated
