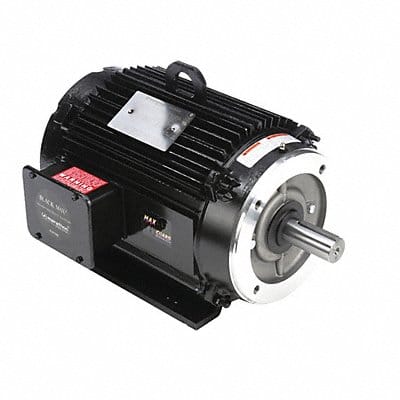

Vector Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 575V AC Full Load Amps 8.4 A 213TC Frame Torque 22.3 ft-lb Max Speed 4 200 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
