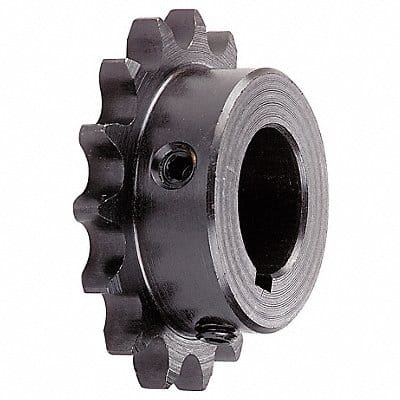

Single Strand Sprocket Bore Diameter 1 in For Chain Pitch 3/4 in For Number of Strands Single Hub Type One Side Material Steel Maximum Bore Diameter 1 in Number of Teeth 16 Outside Diameter 4.22 in Pitch Diameter 3.845 in Bore Type Fixed Chain Number 60 Finish Black Oxide For Pitch Type Single Pitch Hub Diameter 3 1/16 in Hub Projection 0.791 in Includes Set Screws Keyway Yes Keyway Depth 1/8 in Keyway Width 1/4 in Length through Bore 1 1/4 in Material Grade 1045
