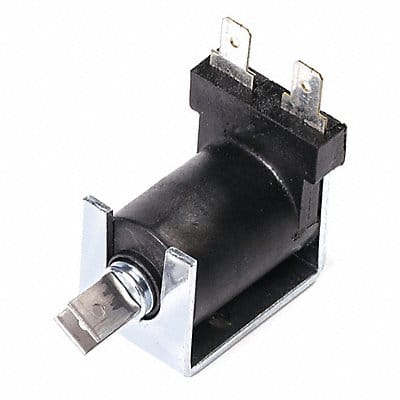

Solenoid AC C-Frame Pull Type Stroke Range 0 to 1/2 in Pull Force Range 3.2 to 56 oz Width 3/4 in Depth 81/100 in Length 1 13/100 in Coil Volts 120 V AC Seated Amps 0.112 A Coil Resistance 500 ohms Coil Insulation 105C max Class A Terminals 3/16 in QC Amps @ Max Stroke 0.146 A Duty Cycle Intermittent Max On Time 180 sec Material of Construction Steel Mounting Holes 2x #6-32 UNC 3/4 in From Mounting Holes to Plunger Hole Standards RoHS
