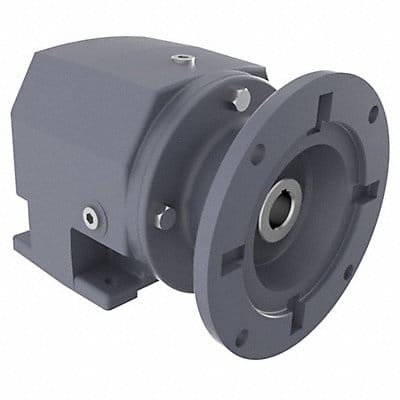

Speed Reducer Input Connection Type C-Face Gear Type Helical Maximum Output Speed 175 RPM Motor Frame Designation 140TC/180C Base to Center 1.56 in Gear Ratio 10 1 Rotation CW/CCW Maximum Input Horsepower 1.5 hp Maximum Output Torque 524 in-lb Overhung Load Capacity 385 ft-lb Mounting Orientation Horizontal Vertical Bearing Type Ball Maximum Input Speed 1 750 RPM Gear Material Hardened and Ground Steel
