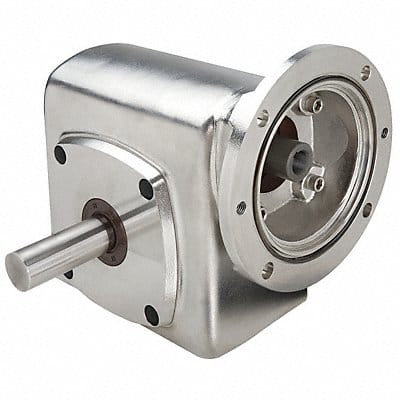

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Round Maximum Output Speed 175 RPM Motor Frame Designation 140TC/180C Worm Center Distance 2.62 in Base to Center 2.94 in Gear Ratio 10 1 Rotation CW/CCW Maximum Input Horsepower 3 hp Maximum Output Torque 972 in-lb Overhung Load Capacity 1 000 ft-lb Mounting Orientation Any Angle Housing Material Stainless Steel Bearing Type Tapered Roller
