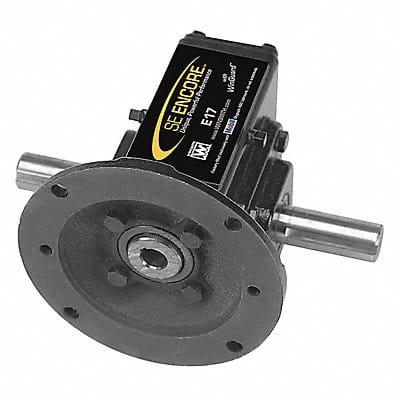

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Hollow Maximum Output Speed 35 RPM Motor Frame Designation 140TC Worm Center Distance 3.5 in Base to Center 4 in Gear Ratio 50 1 Rotation CW/CCW Maximum Input Horsepower 2 hp Maximum Output Torque 3076 in-lb Overhung Load Capacity 2 130 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Housing Material Finish Epoxy Coating System
