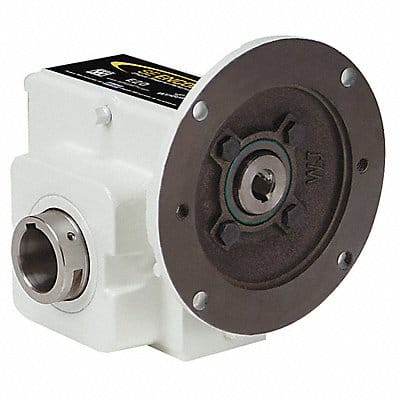

Speed Reducer Input Connection Type C-Face Output Shaft Type Hollow Maximum Output Speed 86 RPM Motor Frame Designation 180TC Worm Center Distance 3.5 in Base to Center 4 in Gear Ratio 20 1 Rotation CW/CCW Maximum Input Horsepower 5 hp Maximum Output Torque 3334 in-lb Overhung Load Capacity 2 204 ft-lb Mounting Orientation Any Angle Housing Material Finish Epoxy Coating System
