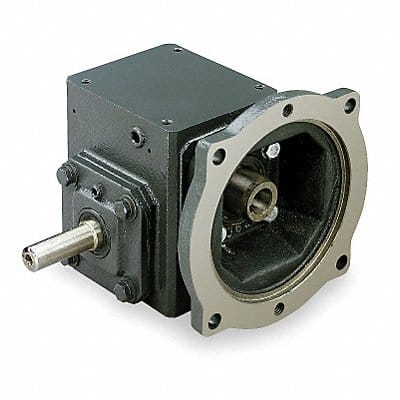

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Keyed Maximum Output Speed 350 RPM Motor Frame Designation 210TC Worm Center Distance 3.25 in Gear Ratio 5 1 Rotation CW/CCW Maximum Input Horsepower 7.5 hp Maximum Output Torque 1260 in-lb Overhung Load Capacity 1 500 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Application Speed Reducer Bearing Type Ball Tapered Roller Gear Material Hardened Steel Manganese Bronze
