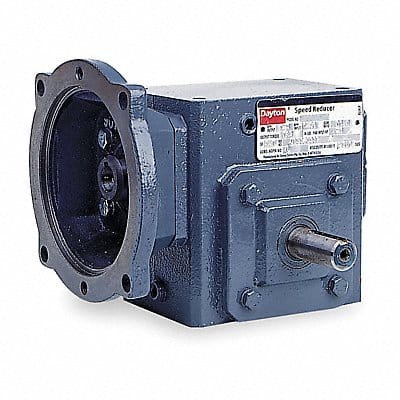

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Keyed Maximum Output Speed 175 RPM Motor Frame Designation 56C Worm Center Distance 1.33 in Gear Ratio 10 1 Rotation CW/CCW Maximum Input Horsepower 0.75 hp Maximum Output Torque 182 in-lb Overhung Load Capacity 275 ft-lb Mounting Orientation Any Position Except Input Motor Shaft Up Housing Material Cast Iron Application Speed Reducer Bearing Type Ball Tapered Roller
