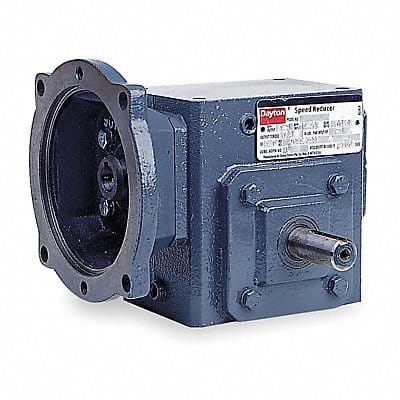

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Keyed Maximum Output Speed 88 RPM Motor Frame Designation 56C Worm Center Distance 2.37 in Gear Ratio 20 1 Rotation CW/CCW Maximum Input Horsepower 1.5 hp Maximum Output Torque 892 in-lb Overhung Load Capacity 843 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Application Speed Reducer Bearing Type Ball Tapered Roller Gear Material Hardened Steel Manganese Bronze
