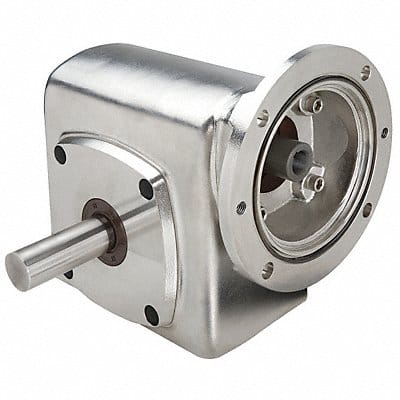

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Round Maximum Output Speed 58 RPM Motor Frame Designation 56C Worm Center Distance 1.75 in Base to Center 2.06 in Gear Ratio 30 1 Rotation CW/CCW Maximum Input Horsepower 0.5 hp Maximum Output Torque 416 in-lb Overhung Load Capacity 600 ft-lb Mounting Orientation Any Angle Housing Material Stainless Steel Shaft Center-to-Center Height 1.75 in Bearing Type Tapered Roller
