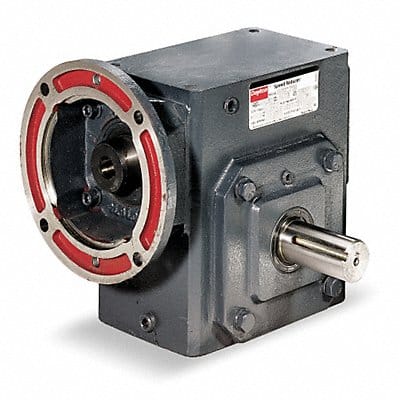

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Round Maximum Output Speed 35 RPM Motor Frame Designation 56C Worm Center Distance 1.75 in Gear Ratio 50 1 Rotation CW/CCW Maximum Input Horsepower 0.5 hp Maximum Output Torque 449 in-lb Overhung Load Capacity 700 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Application Speed Reducer Bearing Type Ball Gear Material Hardened and Ground Steel
