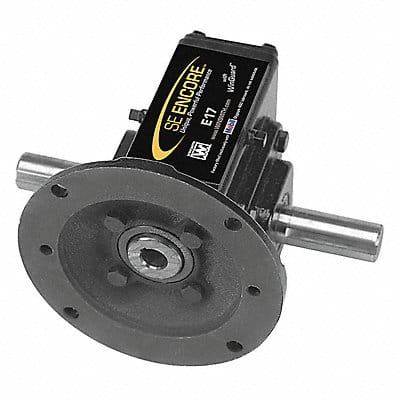

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Hollow Maximum Output Speed 35 RPM Motor Frame Designation 56C Worm Center Distance 1.75 in Base to Center 2.13 in Gear Ratio 50 1 Rotation CW/CCW Maximum Input Horsepower 0.3 hp Maximum Output Torque 449 in-lb Overhung Load Capacity 650 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Housing Material Finish Epoxy Coating System
