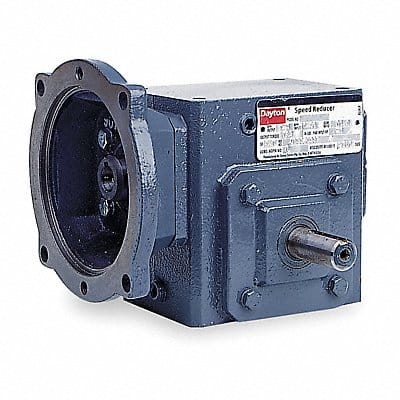

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Round Maximum Output Speed 35 RPM Motor Frame Designation 56C Worm Center Distance 3.25 in Gear Ratio 50 1 Rotation CW/CCW Maximum Input Horsepower 1.5 hp Maximum Output Torque 1857 in-lb Overhung Load Capacity 1 500 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Bearing Type Ball Gear Material Hardened and Ground Steel Housing Material Finish Powder Coated Epoxy Paint
