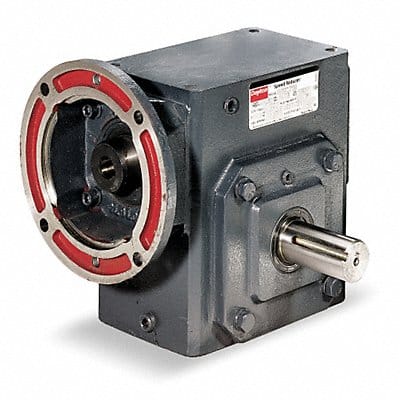

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Keyed Maximum Output Speed 29 RPM Motor Frame Designation 56C Worm Center Distance 2.62 in Gear Ratio 60 1 Rotation CW/CCW Maximum Input Horsepower 0.75 hp Maximum Output Torque 1021 in-lb Overhung Load Capacity 1 300 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Application Speed Reducer Bearing Type Ball Tapered Roller Gear Material Hardened Steel Manganese Bronze
