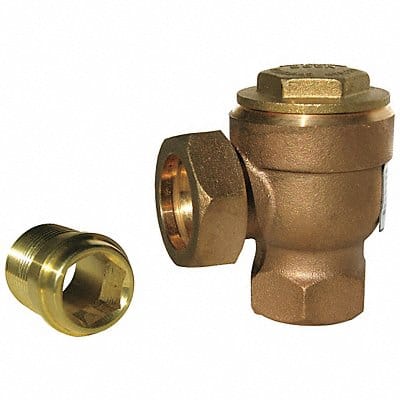

Steam Trap (F)NPT Connections 1 in Max Operating PSI 125 psi End to End Length 3 7/32 in Condensate Capacity Lbs/Hr 4 200 lb/hr Max Temp 353 Degrees F Type Thermostatic Downstream PSI Range 0 to 125 psi Body Material Brass NPT Inlet 1 in NPT Outlet 1 in NPT Port 1 in Pipe Configuration Angle Pressure Air Vent Self-Adjusting Application Drains Heat Exchangers and Other Equipment After Condensate has Subcooled to Maximize the Heat Transfer from the Steam
