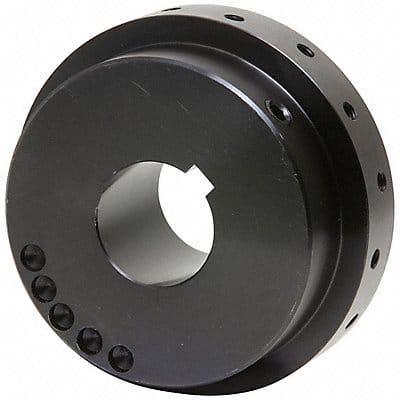

Tire Coupling Hub Angular Misalignment 4 Degrees Coupling Size WE10 Horsepower @ 100 RPM 2.3 hp Maximum Speed 7 500 RPM Bore Type Round Keyed For Bushing Size Not Applicable Maximum Torque 1 450 in-lb Keyway Depth 1/8 in Keyway Width 1/4 in Hub Diameter 3.65 in Parallel Misalignment 0.0625 in Bore Diameter 1 1/8 in Screw Thread Size 1/4 In.-20 Set Screw Location Over Keyway System of Measurement Inch Torsional Stiffness 15 800 in-lb/rad Length through Bore 1 7/8 in
