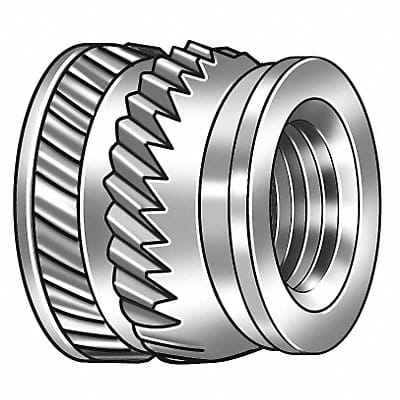

Heat-Set Insert Insert Type Heat-Set Insert System of Measurement Inch Insert Diameter 19/64 in Overall Length 15/64 in Thread Size #10-24 Thread Direction Right Hand Thread Type Coarse Material Brass Shank Type Tapered Tapered End Diameter 0.267 in Flange Style Flush Number of Vanes 1 Compatible Material Thermoplastic Drill Bit Size 0.267 in Minimum Material Thickness 5/32 in Maximum Hole Diameter 0.277 in Features Pull-Out Resistance Finish Plain
