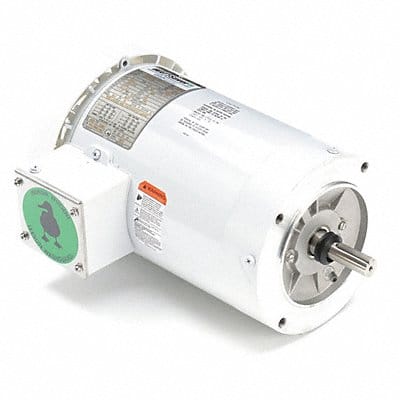

Washdown Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 490 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 8.8-8.0/4.0 A 56C Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face Motor Mounting Position Horizontal
