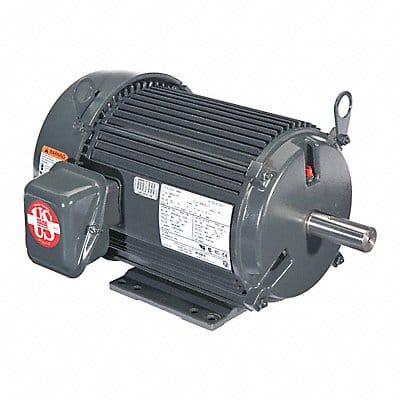

General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 800 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 8.4-7.8/3.9 A 182T Frame Hz 60/50 Hz Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal or Vertical Shaft Down
