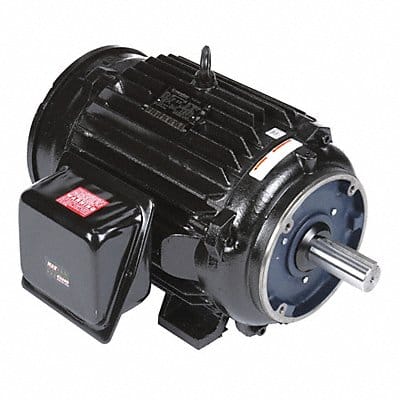

Vector Motor Three Phase Motor Design 3-Phase 30 HP Nameplate RPM 1 772 No of Speeds 1 Voltage 230/460V AC Full Load Amps 74.0/37.0 A 286TC Frame Torque 89 ft-lb Max Speed 1 800 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
