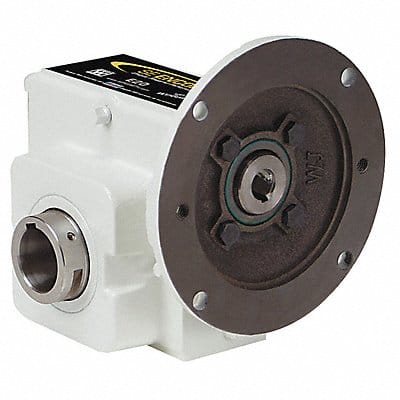

Speed Reducer Input Connection Type C-Face Output Shaft Type Hollow Maximum Output Speed 58 RPM Motor Frame Designation 180TC Worm Center Distance 3.5 in Base to Center 4 in Gear Ratio 30 1 Rotation CW/CCW Maximum Input Horsepower 3 hp Maximum Output Torque 2906 in-lb Overhung Load Capacity 2 528 ft-lb Mounting Orientation Any Angle Housing Material Finish Epoxy Coating System
