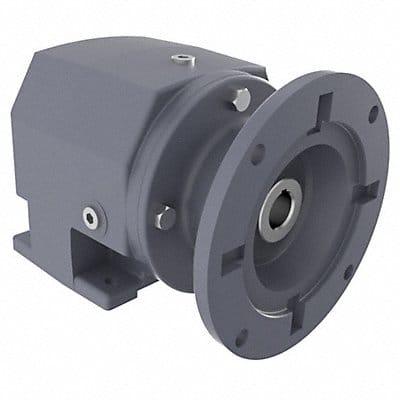

Speed Reducer Input Connection Type C-Face Gear Type Helical Output Shaft Type Round Maximum Output Speed 125 RPM Motor Frame Designation 56C Base to Center 1.56 in Gear Ratio 14 1 Rotation CW/CCW Maximum Input Horsepower 1 hp Maximum Output Torque 478 in-lb Overhung Load Capacity 385 ft-lb Mounting Orientation Horizontal Vertical Bearing Type Ball Maximum Input Speed 1 750 RPM Gear Material Hardened and Ground Steel
