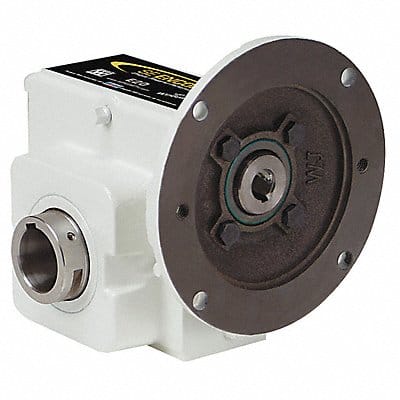

Speed Reducer Input Connection Type C-Face Output Shaft Type Hollow Maximum Output Speed 86 RPM Motor Frame Designation 56C/140TC Worm Center Distance 3 in Base to Center 3.5 in Gear Ratio 20 1 Rotation CW/CCW Maximum Input Horsepower 3 hp Maximum Output Torque 2009 in-lb Overhung Load Capacity 1 750 ft-lb Mounting Orientation Any Angle Housing Material Finish Epoxy Coating System
