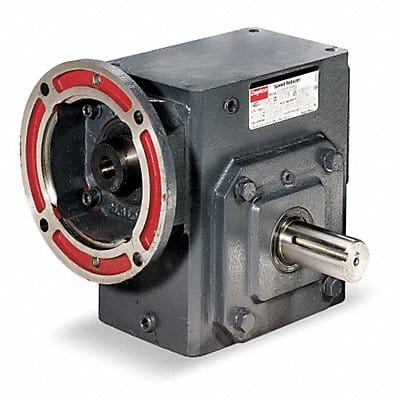

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Keyed Maximum Output Speed 35 RPM Motor Frame Designation 56C Worm Center Distance 3.25 in Gear Ratio 50 1 Rotation CW/CCW Maximum Input Horsepower 1.5 hp Maximum Output Torque 1857 in-lb Overhung Load Capacity 1 500 ft-lb Mounting Orientation Any Position Except Input Motor Shaft Up Housing Material Cast Iron Application Speed Reducer Bearing Type Ball Tapered Roller
