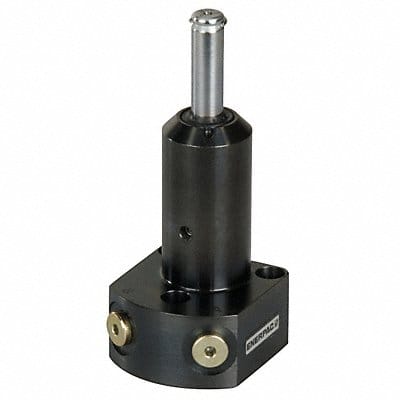

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Lower Flange Single Acting/Double Acting Double Acting Turns Left Clamping Force 500 lb Total Stroke 0.65 in Effective Area Clamped 0.12 sq in Clamping Stroke 0.32 in Max Pressure 5 000 psi Series SLL Swing Angle 90 Degrees Port Size #2 SAE Effective Area Unclamped 0.24 sq in Oil Capacity Clamped 0.08 cu in Oil Capacity Unclamped 0.15 cu in Max Oil Flow 12 cu in/min Pressure Range 500 to 5000 psi
