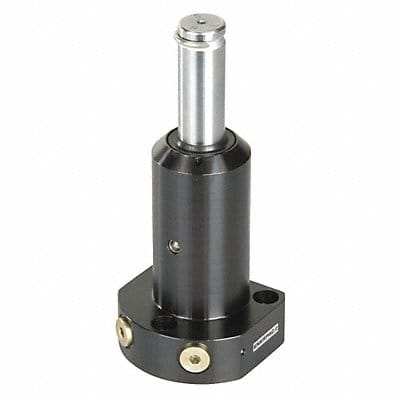

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Lower Flange Single Acting/Double Acting Double Acting Turns Right Clamping Force 7 600 lb Total Stroke 1.28 in Effective Area Clamped 1.92 sq in Clamping Stroke 0.63 in Max Pressure 5 000 psi Series SLR Swing Angle 90 Degrees Port Size 0.4375-20 UNF-2B Effective Area Unclamped 3.68 sq in Oil Capacity Clamped 2.27 cu in Oil Capacity Unclamped 4.35 cu in Max Oil Flow 240 cu in/min
