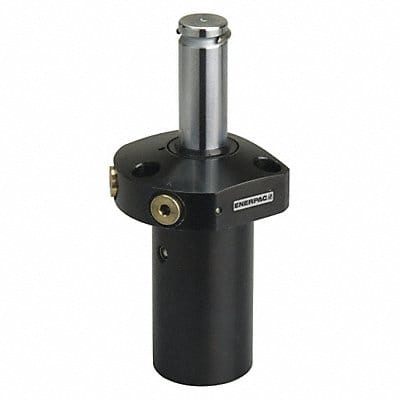

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Double Acting Turns Left Clamping Force 4 200 lb Total Stroke 1.16 in Effective Area Clamped 1.10 sq in Clamping Stroke 0.55 in Max Pressure 5 000 psi Series SU Swing Angle 90 Degrees Port Size #4 SAE Effective Area Unclamped 2.35 sq in Oil Capacity Clamped 1.22 cu in Oil Capacity Unclamped 2.6 cu in Max Oil Flow 140 cu in/min Pressure Range 500 to 5000 psi
