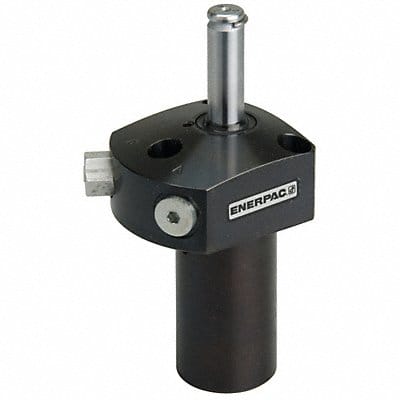

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Double Acting Turns Left Clamping Force 475 lb Total Stroke 1.91 in Effective Area Clamped 1.92 sq in Clamping Stroke 1.25 in Max Pressure 5 000 psi Series SU Swing Angle 90 Degrees Port Size #2 SAE Effective Area Unclamped 3.53 sq in Oil Capacity Clamped 3.53 cu in Oil Capacity Unclamped 6.77 cu in Max Oil Flow 12 cu in/min Pressure Range 500 to 5000 psi
