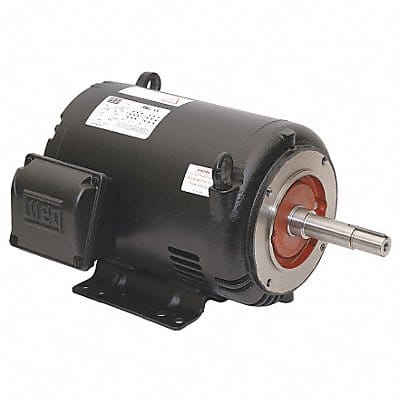

Close-Coupled Pump Motor Body Dia 6.6 in Bolt Circle Dia 5 7/8 in CC Number CC029A Conduit Box Location Exterior Conduit Box Position F1 Duty Cycle Continuous Frame 143/5JM Hz 60 Hz Full Load Amps 3.3-3.0/1.5.0 Height 6 3/4 in HP 1 HP @ 50Hz 1 Ins. Class F Inverter Rated Yes Inverter Rating 1000 1 Length Less Shaft 9 7/16 in Manufacturers Warranty Length 3 yr Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase
