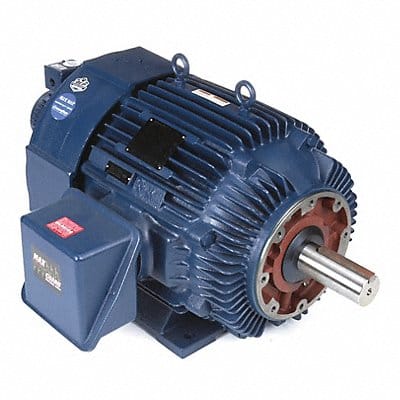

Vector Motor Three Phase Motor Design 3-Phase 60 HP Nameplate RPM 1 180 No of Speeds 1 Voltage 230/460V AC Full Load Amps 142.0/71.0 A 404TC Frame Max Speed 1 200 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Hz Max Operating Frequency 90 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class H Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled
