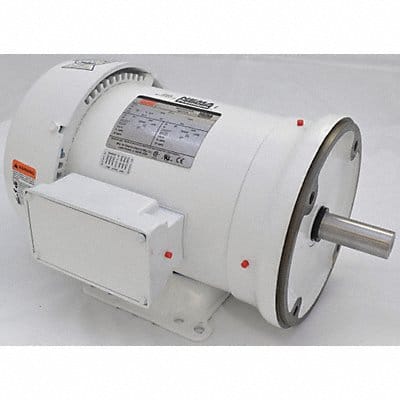

Washdown Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 765 Voltage 230/460V AC Full Load Amps 7.6/3.8 A 182TC Frame 60/50 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled Steel
